Hull Anodes for Marine & Ship Hull Protection
Zinc and aluminium sacrificial hull anodes engineered to provide reliable cathodic protection for ship hulls and submerged marine structures.
HULL ANODES

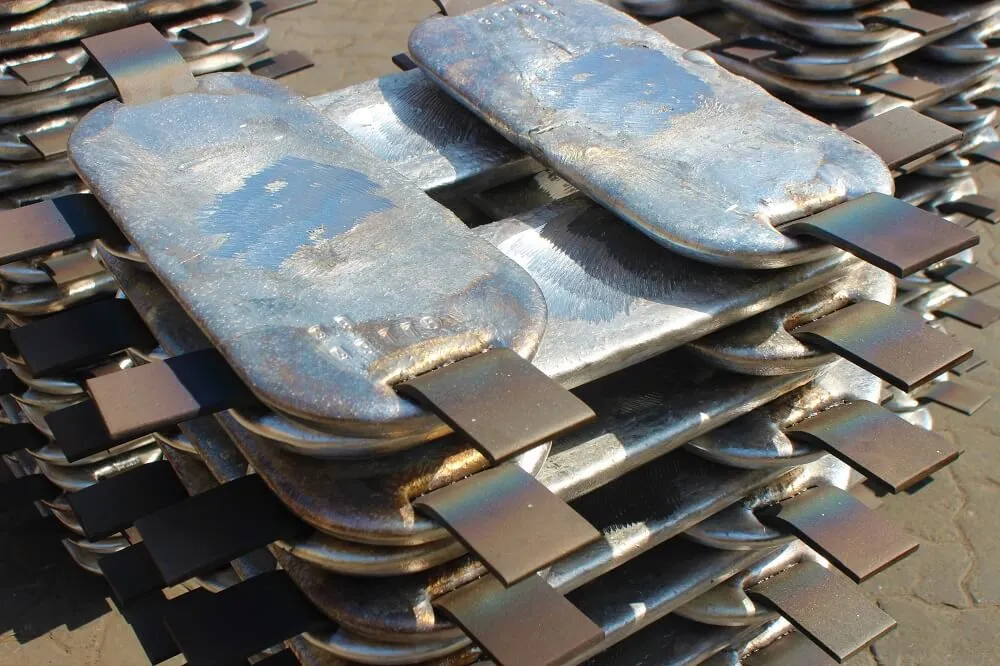

Hull Anodes for Reliable Ship Hull Protection
Hull Anodes are sacrificial anodes designed to protect the underwater surfaces of ships and marine vessels from corrosion. RELI SLEEVE offers zinc and aluminium anode solutions for marine cathodic protection applications where submerged steel surfaces are exposed to seawater or other conductive marine environments.
During operation, the sacrificial anode acts as the more active metal in the cathodic protection system. It gradually consumes itself while helping protect the connected steel hull from corrosion. This makes correctly selected hull anodes an important component of a vessel's corrosion protection strategy.
Hull anodes are generally installed by welding directly to the ship hull. Where required by the vessel design or installation requirements, bolted configurations can also be provided. The anode dimensions, configuration and insert arrangement can be developed according to customer requirements and project specifications.
With the Reliable Group's long-standing experience in industrial materials, pipeline engineering and corrosion protection solutions, RELI SLEEVE is expanding its product offering into anode and cathodic protection solutions for marine and industrial applications.
Key Features of Hull Anodes
Ship Hull Protection
Designed for cathodic protection of submerged steel ship hull surfaces exposed to marine environments.
Zinc & Aluminium Options
Available using suitable zinc or aluminium sacrificial anode alloys according to application and approved project requirements.
Welded Installation
Hull anodes can be designed for direct welding to the ship hull for a secure electrical and mechanical connection.
Custom Configuration
Anode dimensions, inserts and installation arrangements can be developed according to customer requirements.
Hull Anodes Technical Specification
| Product Type | Sacrificial Hull Anode |
|---|---|
| Primary Application | Ship Hulls & Marine Vessels |
| Protection Method | Galvanic / Sacrificial Cathodic Protection |
| Available Materials | Aluminium Alloy / Zinc Alloy |
| Installation | Welded or Bolted, as per project requirement |
| Anode Configuration | Hull-specific / Customer-specific |
| Anode Dimensions | As per customer drawing and CP design |
| Insert Design | As per customer requirement |
| Operating Environment | Marine / Seawater Environment |
| Electrical Connection | Through approved hull mounting arrangement |
| Design Life | As per cathodic protection design |
| Manufacturing Basis | Applicable alloy specification, customer specification or approved drawing |
Available Grades & Standards
Hull anodes can be manufactured using suitable aluminium or zinc alloy compositions selected according to the cathodic protection design, operating environment and customer-approved specification.
Galvalum III Equivalent
Aluminium alloy anode composition suitable for applicable marine cathodic protection requirements.
DNV & ISO
Aluminium anodes can be manufactured according to applicable DNV and ISO requirements where specified.
Alanode
Aluminium alloy composition can be produced according to the applicable Alanode specification.
US Mill Specification
Zinc hull anodes can be manufactured according to applicable US Mill specification requirements.
ASTM B148-II
Zinc alloy composition can be supplied according to the applicable ASTM specification.
Customer Specification
Special compositions, dimensions, inserts and configurations can be considered against approved requirements.
Final alloy grade, dimensions, anode quantity, current output and design life should be established from the approved cathodic protection design and project specification.
Chemical Composition
The following alloy compositions are available for applicable aluminium and zinc sacrificial anode systems. Final material selection should follow the approved project specification and cathodic protection design.
Aluminium Anodes
Aluminium anodes can be manufactured as per Galvalum III equivalent, DNV, ISO, Alanode standards or customer specifications.
| Element | Galvalum III (Eqv.) | DNV & ISO | Alanode |
|---|---|---|---|
| Zn | 2.0–6.5 | 2.5–5.75 | 0.50–5.00 |
| In | 0.01–0.02 | 0.016–0.04 | 0.005–0.05 |
| Si | 0.08–0.20 | 0.12 Max. | 0.10 Max. |
| Fe | 0.12 Max. | 0.09 Max. | 0.13 Max. |
| Cu | 0.006 Max. | 0.003 Max. | 0.01 Max. |
| Cd | 0.002 Max. | — | — |
| Others (Each) | 0.02 Max. | 0.02 Max. | 0.02 Max. |
| Others (Total) | 0.06 Max. | — | — |
| Al | Remainder | Remainder | Remainder |
Zinc Anodes
Zinc anodes can be manufactured according to applicable US Mill specifications, ASTM standards or customer requirements.
| Element | US Mill Spec | ASTM B148-II |
|---|---|---|
| Al | 0.10–0.50 | 0.005 Max. |
| Si | 0.125 Max. | — |
| Cd | 0.025–0.15 | 0.03 Max. |
| Fe | 0.005 Max. | 0.0014 Max. |
| Pb | 0.006 Max. | 0.003 Max. |
| Cu | 0.005 Max. | 0.002 Max. |
| Zn | Remainder | Remainder |
Aluminium Anode Electrochemical Characteristics
The following electrochemical values apply to the aluminium anode data supplied for marine cathodic protection applications.
| Operating Environment | Seawater at 23°C |
|---|---|
| Reference Electrode | Ag / AgCl |
| Open Circuit Potential | More negative than −1.10 V |
| Closed Circuit Potential | More negative than −1.05 V w.r.t. Ag / AgCl reference electrode |
| Anode Capacity | 2,550–2,750 A·hr/kg |
Electrochemical performance depends on alloy composition, operating environment, temperature, current demand and cathodic protection system design. Final design values should be confirmed for the specific vessel and operating conditions.
Hull Anode Applications
Commercial Ships
Sacrificial anode protection for underwater hull surfaces of commercial vessels.
Marine Vessels
Suitable for vessel hulls requiring galvanic cathodic protection in marine environments.
Shipbuilding
Hull anodes can be incorporated into new vessel construction according to approved drawings and CP requirements.
Vessel Maintenance
Replacement hull anodes can be configured to suit existing vessel mounting arrangements.
Saltwater Service
Zinc and aluminium anode systems can be selected for applicable saltwater cathodic protection requirements.
Custom Marine Structures
Special anode sizes, inserts and mounting arrangements can be considered for customer-specific applications.
Advantages of Hull Anodes
About RELI SLEEVE
Reliable Group Experience Since 1975
RELI SLEEVE is part of the Reliable Group, which has served the Oil & Gas, Petrochemical, Power, Water, Infrastructure and Process Industries for more than five decades. Beginning as a trading business supplying steel pipes, plates and industrial raw materials, the Group evolved into an international organization involved in trading, importing, manufacturing, exporting and engineering solutions.
The Group's flagship Reliable Pipes & Tubes Ltd. supplies stainless steel, carbon steel, alloy steel and special steel products including pipes, tubes, fittings, flanges, plates, coils, bars and industrial components. RELI SLEEVE was established as a specialized division for corrosion protection and internal coating solutions, serving Oil & Gas companies, EPC contractors and pipeline operators.
Building on this foundation, RELI SLEEVE has expanded into advanced anode products and cathodic protection systems. This development strengthens the Group's ability to provide broader pipeline integrity and asset protection solutions for customers in India and international markets.
Hull Anodes FAQ
Hull Anodes are sacrificial anodes installed on ship hulls to provide galvanic cathodic protection and help reduce corrosion of submerged steel surfaces.
RELI SLEEVE can provide hull anode solutions using zinc and aluminium alloy systems, subject to application, CP design and approved specifications.
Hull anodes are commonly welded directly to the ship hull. Bolted configurations can also be provided where required by the vessel design or installation requirements.
Yes. Anode dimensions, configuration and insert designs can be fabricated according to customer requirements and approved project drawings.
Applicable aluminium and zinc alloy specifications can be selected according to the customer's approved requirement. Available specifications include Galvalum III equivalent, DNV, ISO, Alanode, US Mill specifications and applicable ASTM requirements.
Selection depends on vessel size, underwater surface area, operating environment, required protection level, anode material, current demand, design life and the approved cathodic protection calculation.
Yes. Customer-specific dimensions, inserts and mounting arrangements can be considered based on approved drawings, specifications and project requirements.
Need Hull Anodes for Your Vessel?
Share your vessel details, required anode material, dimensions or drawing with our team for a project-specific hull anode solution.
